How to Mount, Dismount & Maintain Insert Bearings with Housings – A Practical Guide

Learn step-by-step installation, safe disassembly, and regular maintenance tips for insert bearings with housings. Improve bearing life and reduce downtime. From BCHH Bearing.

• Proper Installation Steps

• Safe Disassembly Methods

• Daily & Periodic Maintenance

• Common Mistakes to Avoid

• Why Choose BCHH Bearing Units

1. Proper Installation Steps for Insert Bearings with Housings

1.1 Prepare the Shaft

Clean the shaft thoroughly – remove rust, burrs, and old adhesive.

Check shaft diameter tolerance (h6 or j6 recommended).

Too tight = bearing deformation. Too loose = vibration.

1.2 Align the Housing

Mount the housing on a flat, clean surface.

Use a feeler gauge or dial indicator to check alignment between shaft and housing.

1.3 Apply Lubrication Before Mounting

BCHH bearings come pre‑greased, but add a thin layer of grease on the shaft contact area to prevent fretting corrosion.

Avoid over‑greasing – it may push out seals.

1.4 Choose the Correct Mounting Method

For set‑screw locking type:

Tighten the two set‑screws evenly in a cross pattern.

Use a hex wrench – do not overtighten.

For eccentric locking collar type:

Rotate the collar in the direction of shaft rotation.

Tap it gently with a brass rod, then lock the set‑screw.

General rule:

Never hammer directly on the bearing or housing.

Use a soft metal tube or mounting sleeve that contacts only the inner ring.

1.5 Final Check After Mounting

Rotate the shaft by hand – it should turn smoothly with no unusual noise or resistance.

Measure radial play if required.

2. How to Dismount Without Damaging the Bearing

Disconnect power – safety first.

Loosen locking devices – set‑screws or eccentric collar.

Use a bearing puller – grip the inner ring only. Never pull on the outer ring or housing.

Remove housing bolts – then clean and inspect the housing for cracks.

Check the shaft – polish lightly if scoring is found.

3. Regular Maintenance to Extend Bearing Life

4. Common Mistakes to Avoid

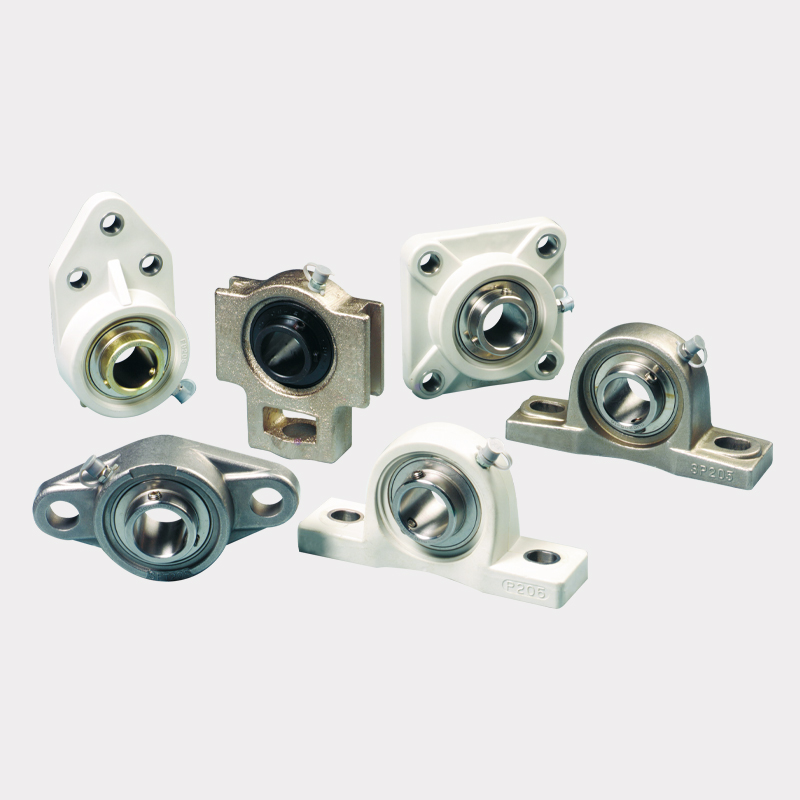

5. Why Choose BCHH Insert Bearings with Housings?

BCHH Bearing is an ISO 9001 certified manufacturer with over 20 years of experience. We are a factory, not a trading company.

Our bearing units feature:

High‑grade cast iron or pressed steel housings

Deep groove ball bearings with extended inner rings

Superior triple‑lip seals

Pre‑lubricated and ready to install

Explore our full range:

http://bchhbearing.com/products/Insert-Bearing-With-Housing/1228.html

Need technical support? Contact our engineering team at sales@wuhanbearing.com for a free consultation or sample request.

Final Thought

Proper installation, careful disassembly, and regular maintenance are the three pillars of long service life for mounted bearings. Follow the tips above to avoid premature failures and get the most out of your BCHH bearing units.
